$165.00
Sold Out - Backorder Available

Enter qty and post code to calculate shipping:



Australia Post Express Satchel - $13.20
Air delivery Australia wide.

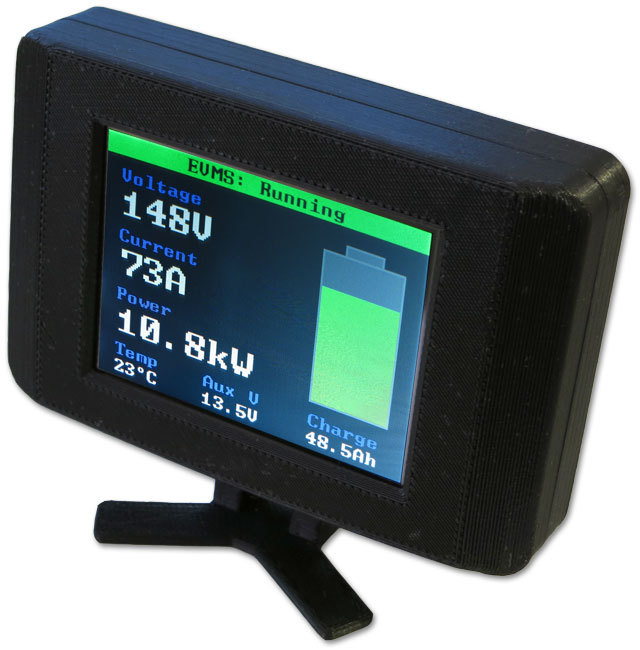

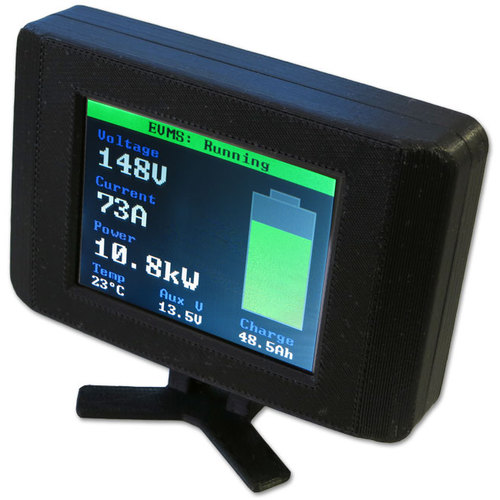

The EVMS Monitor V3 is designed to work in conjunction with our Electric Vehicle Management System V3, and associated devices such as the BMS12 V2 modules, ZEVA motor controllers, TC Chargers, and our BMS16 V2/V3. Built around a 3.2" colour touchscreen, the Monitor enables viewing of a range of operating information from within the cabin including:


Operating data from the EVMS3 including pack voltage, current, power, state of charge, temperature and auxiliary voltage.
BMS summary information including cell count, highest/lowest/average cell voltages, state of balance.
Detailed information on each BMS module including every cell voltage (to within 0.001V) and temperature inputs.
Visual and audible alerts to warn the driver of any operational errors detected.
Motor controller status, voltages, current, power, operating temperature, throttle level, and a range of possible error conditions.
TC Charger voltage, current and status

The EVMS Monitor also includes a Setup mode for configuring a range of operating parameters for all devices on the CAN bus.

The Monitor is available in an enclosed housing with adjustable foot for dash mounting, or a flat panel mounting.

Please note that the Monitor V3 is for the EVMS3, BMS16 V2/V3 and motor controllers only. It is not compatible with older ZEVA devices such as the EVMS Core, EVMS Lite V2 or BMS16 V1. For these devices, the Monitor V2 should be ordered.

(EVMS-monitor)

Supply voltage: 12V (8-20V max)
Current draw: 120mA with display on, 20mA display off
5-pin CAN bus port for comms and power (Molex C-Grid SL)
Dimensions (dash mount variant, excluding foot): 96x62x16mm


SKU EVMS-monitor
Brand ZEVA
Shipping Weight 0.2000kg
Shipping Width 0.150m
Shipping Height 0.050m
Shipping Length 0.150m
Shipping Cubic 0.001125000m3
