Click to enlarge
$12.65
Sold Out - Backorder Available
Buy In Bulk & Save!
Buy 0 to 9: Pay $12.65
Buy 10 or more: Pay $11.55

Enter qty and post code to calculate shipping:



Australia Post Express Satchel - $13.20
Air delivery Australia wide.

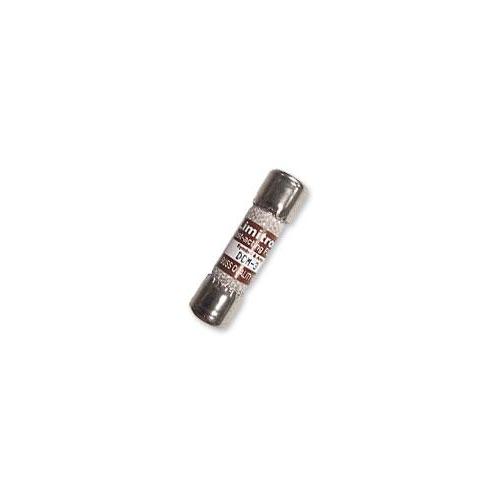

These Bussmann \"Midget Fuses\" are the ideal solution for protecting the wiring to your lower power devices connected to the traction pack in your EV, such as your DC/DC converter, charger, BMS, etc. Few fuses on the market have a DC voltage rating high enough for use in electric vehicle traction circuits - don\'t get caught out with inappropriate safety devices! Bussmann DCM series: UL Listed up to 600VDC (and AC) Interrupting rating of 50,000A DC Dimensions are 38.1mm long x 10.3mm diameter Construction: Melamine tube with silver fuse element and nickel plated brass end-caps. Agency information: CE, UL Listed: STD 248-14, CSA Certified We also carry inexpensive fuse holders for these fuses. Installation should be as close as possible to where your wiring branches off the traction circuit, to maximise protection. See our circuits section for a graphical example. Weight: 80 g

(FUS-DCM015)

SKU FUS-DCM015
Brand BUSSMAN
Shipping Weight 0.0100kg
Shipping Width 0.040m
Shipping Height 0.010m
Shipping Length 0.010m
Shipping Cubic 0.000004000m3
