$3.89
Sold Out - Backorder Available
Buy In Bulk & Save!
Buy 0 to 9: Pay $3.75
Buy 10 to 99: Pay $3.40
Buy 100 or more: Pay $3.05

Enter qty and post code to calculate shipping:



Australia Post Express Satchel - $13.20
Air delivery Australia wide.

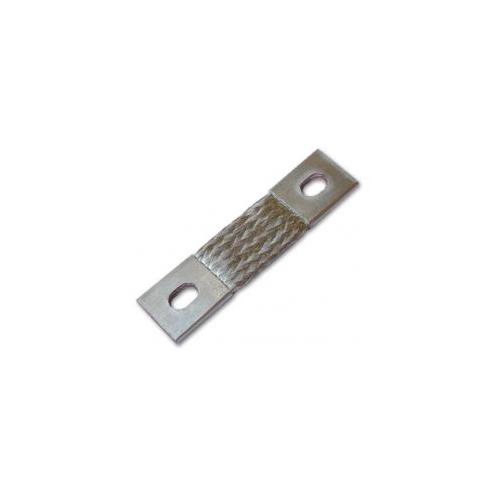

Due to shortcomings encountered with ThunderSky\'s own terminal connectors, we a designed a range of these great braided cell interconnectors, specifically for hooking up lithium battery packs in electric vehicles.

They are made from tinned copper braid (50sqmm total) with crimped tinned copper end caps, ensuring a minimum resistance connection between battery terminals. They offer a little flex between cells to ensure a good connection even when adjacent cells are not perfectly aligned.

The 70-8 size has a nominal pitch of 70mm with elongated 8mm holes, making them suitable for connecting M8 terminals between 66mm to 74mm.

Quick reference guide: (WB = Winston batteries, SE = Sky Energy)

Size: Side by side End to end
50-6 WB 40Ah, SE 40Ah, SE 60Ah SE 40Ah
60-6 WB 60Ah WB 40Ah, WB 60Ah, SE 60Ah
60-8 WB 90Ah, WB 100Ah, SE 130Ah WB 90Ah, WB 100Ah, SE 100Ah
70-8 WB 160Ah, SE 100Ah, SE 180Ah -
80-8 - WB 160Ah, SE 130Ah, SE 180Ah
90-8   WB 160Ah
55-12 WB 200Ah,
65-12 WB 400Ah, 1000Ah,


Weight: 70 g

Installation tips: We highly recommend cleaning the oxide off battery terminals thoroughly with a wire brush before installing cell interconnectors, since aluminium oxide in particular has quite high electrical resistance. Also make sure you always use spring washers under the bolt heads to prevent them loosening.

(BAT-EVW-BCI-70-8)

SKU BAT-EVW-BCI-70-8
Shipping Weight 0.0600kg
Shipping Width 0.002m
Shipping Height 0.050m
Shipping Length 0.100m
Shipping Cubic 0.000010m3
