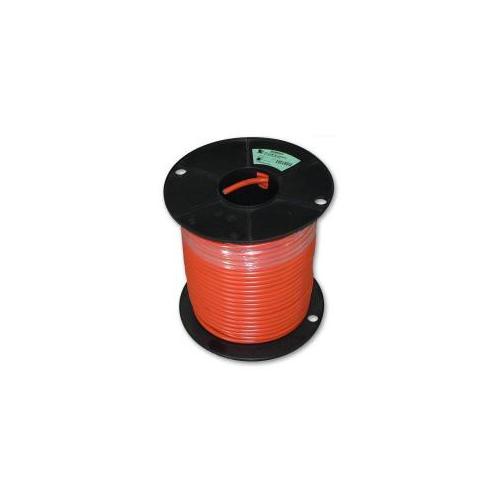

This cable has 50mm² of copper conductor made up of very fine strands, resulting in highly flexible power cable which is easy to work with. It is double insulated (orange outer with white inner) for excellent wearability and safety.

Continuous current rating (AS3008): 240A
Conductor: Nominal 0.2mm stranded flexible plain copper wire (to AS1125)
Insulation: 0.6/1KV Nitrile (NBR) modified PVC, complies with AS3808 V90HT (105°C)
Resistance: 0.272 ohms per km (@20°C)
Nominal O.D: 17.4mm
Mass: 750g/m

Orange insulation is a legal requirement for any cables carrying voltages over 32VDC in road-going vehicles. 50mm² is recommended for medium power EVs, with controllers rated to about 500 amps.

Weight: 600 g


Shipping Weight 0.8300kg
Shipping Width 0.320m
Shipping Height 0.025m
Shipping Length 0.320m
Shipping Cubic 0.002560000m3
