NetGain HyPer 9 Dual shaft motor NetGain HyPer 9 Dual shaft motor
$6,650.00
Back Order
NetGain HyPer 9 IS NetGain HyPer 9 IS
$6,300.00
See Buying Options
NetGain HyPer 9 IS Dual shaft with chill plate NetGain HyPer 9 IS Dual shaft with chill plate
$6,875.00
See Buying Options
NetGain HyPer 9 IS with chill plate NetGain HyPer 9 IS with chill plate
$6,525.00
See Buying Options

Now taking pre-orders for the long awaited AC motor form NetGain. Deliveries Nov-Dec 2017

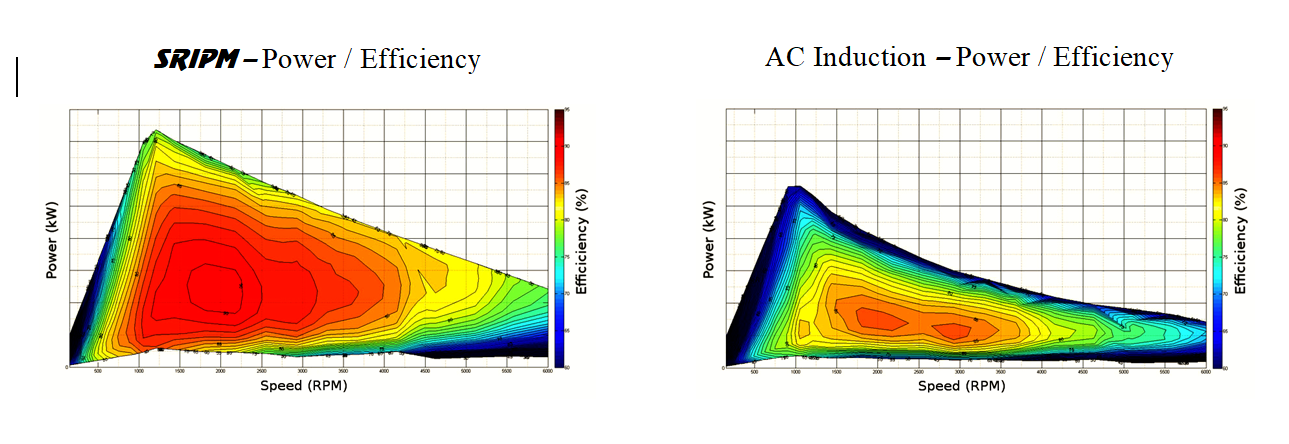

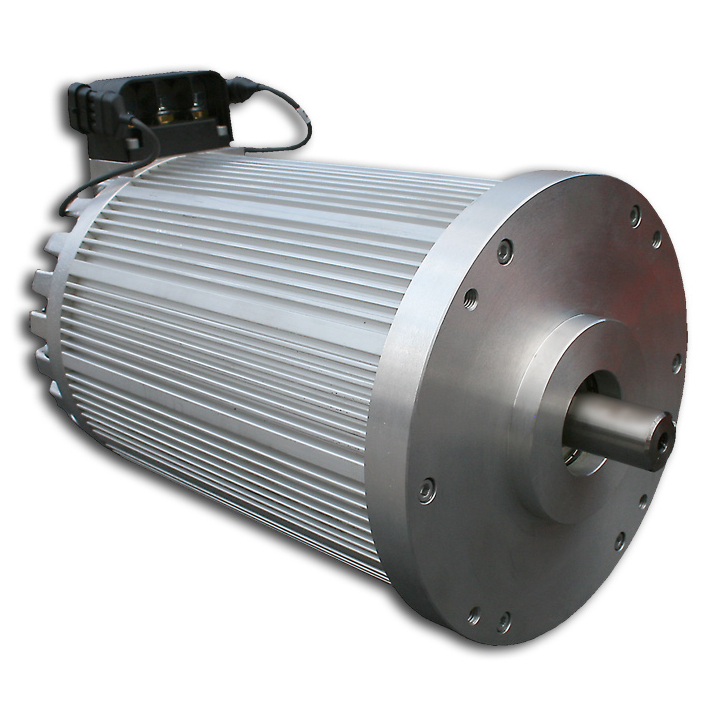

The HyPer9 is a Synchronous Reluctance Internal Permanent Magnet (SRIPM) motor delivering outstanding Torque and efficiency, ideal for small to medium vehicle conversions. The HyPer9 IS kit includes Motor, Controller, low voltage wiring harness, compact display, throttle and main contactor.

Dual shaft option adds an auxiliary shaft to the encoder end of the motor, this Can’t be added later.

Chill plate allows the controller to run at high power levels for longer and is highly recommended for use in warm climates.

User manual

  • Voltage: 100V Nominal
  • Current: 750A
  • Efficiency peak: 95%
  • KW Peak: 100 @ 125v
  • KW continuous 35 @ 125v
  • RPM peak: 8000
  • RPM continuous: 3300
  • Torque: 235Nm
  • Regen: Yes
  • Motor dia: 220mm
  • Motor Length:355mm
  • Motor Weight: 55Kg

(mot-H9is)

SKU mot-H9is
Brand NETGAIN
Shipping Weight 65.0000kg
Shipping Width 0.400m
Shipping Height 0.400m
Shipping Length 0.550m
Shipping Cubic 0.088000m3
