Click to enlarge
$3,850.00
Sold Out - Backorder Available

Enter qty and post code to calculate shipping:


Zilla controllers are back!

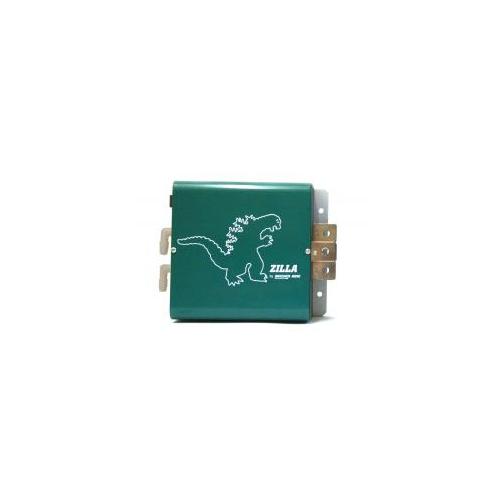

Now being manufactured by Manzanita Micro the Z1K-LV is a 156V 1000A motor controller for series DC motors, offering peak power of 150kW. These are powerful enough for demanding applications such as sports cars and direct drive systems. Zillas use water cooling to enable high continuous power output.

The included "Hairball" interface is required to run the Zilla controller, and performs a range of functions such as main contactor control and precharge, 40+ status and error codes, stalled rotor protection, valet mode, RS232 port for programming, etc.

Serial port configuration allows users to adjust battery voltage, battery current, motor voltage, motor current, RPM limits and more.

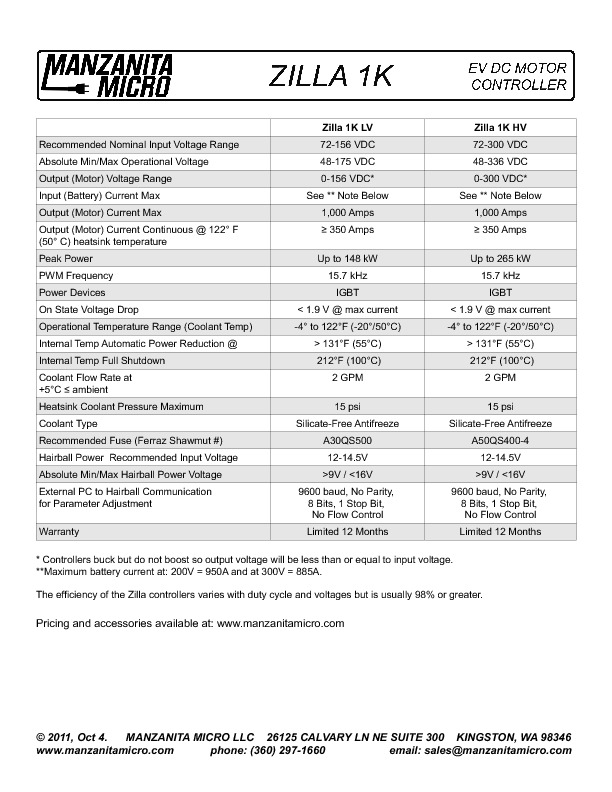

Nominal voltage range: 72V - 156V
Maximum motor current: 1000A
Peak power: 150kW
PWM frequency: 15.7kHz
Voltage drop: <1.9V at maximum current
Water cooled for sustained high power operation
Multiple microprocessors which cross-check for security and safety
Dimensions (Zilla), mm: 180W x 120H x 230L
Dimensions (Hairball), mm: 90W x 45H x 250L

Weight: 10 kg

(CTL-Z1K-LV)

SKU CTL-Z1K-LV
Brand MANZANITA MICRO
Shipping Weight 9.0000kg
Shipping Width 0.350m
Shipping Height 0.250m
Shipping Length 0.250m
Shipping Cubic 0.021875000m3
