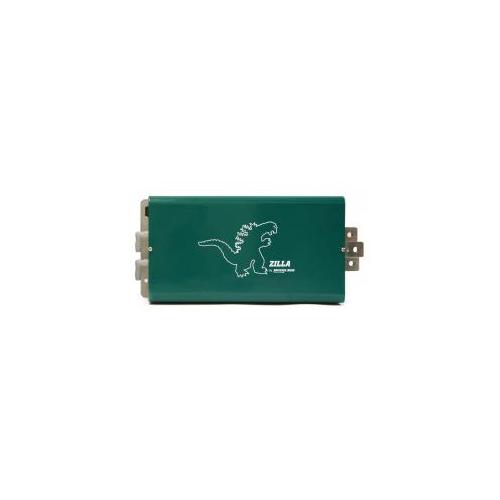

Manzanita Micro Zilla Z2K-HV 300V 2000A DC Motor
$7,370.00
Sold Out - Backorder Available
Enter qty and post code to calculate shipping:
Zilla controllers are back! Now being manufactured by Manzanita Micro, the Z2K-HV is a 300V 2000A motor controller for series DC motors, offering peak power of 600kW, plenty for even the most demanding applications such as drag racing and circuit racing. Zillas use water cooling to enable high continuous power output. The included Hairball interface is required to run the Zilla controller, and performs a range of functions such as main contactor control and precharge, 40+ status and error codes, stalled rotor protection, valet mode, RS232 port for programming, etc. Serial port configuration allows users to adjust battery voltage, battery current, motor voltage, motor current, RPM limits and more. Nominal voltage range: 72V - 300V Maximum motor current: 2000A Peak power: 600kW PWM frequency: 15.7kHz Voltage drop: <1.9V at maximum current Water cooled for sustained high power operation Multiple microprocessors which cross-check for security and safety Dimensions (Zilla), mm: 360W x 120H x 230L Dimensions (Hairball), mm: 90W x 45H x 250L Weight: 20 kg
(CTL-Z2K-HV)
SKU | CTL-Z2K-HV |
Brand | MANZANITA MICRO |
Shipping Weight | 9.0000kg |
Shipping Width | 0.450m |
Shipping Height | 0.250m |
Shipping Length | 0.250m |
Shipping Cubic | 0.028125000m3 |
