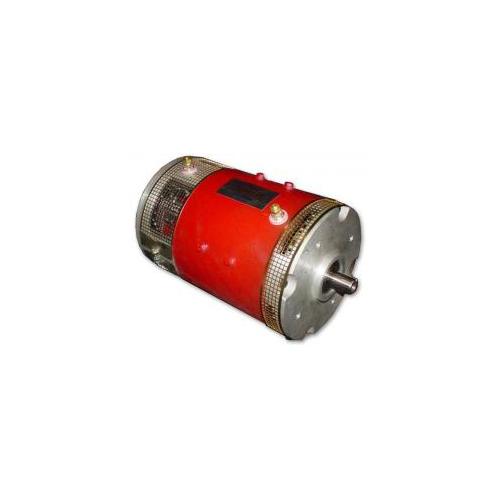

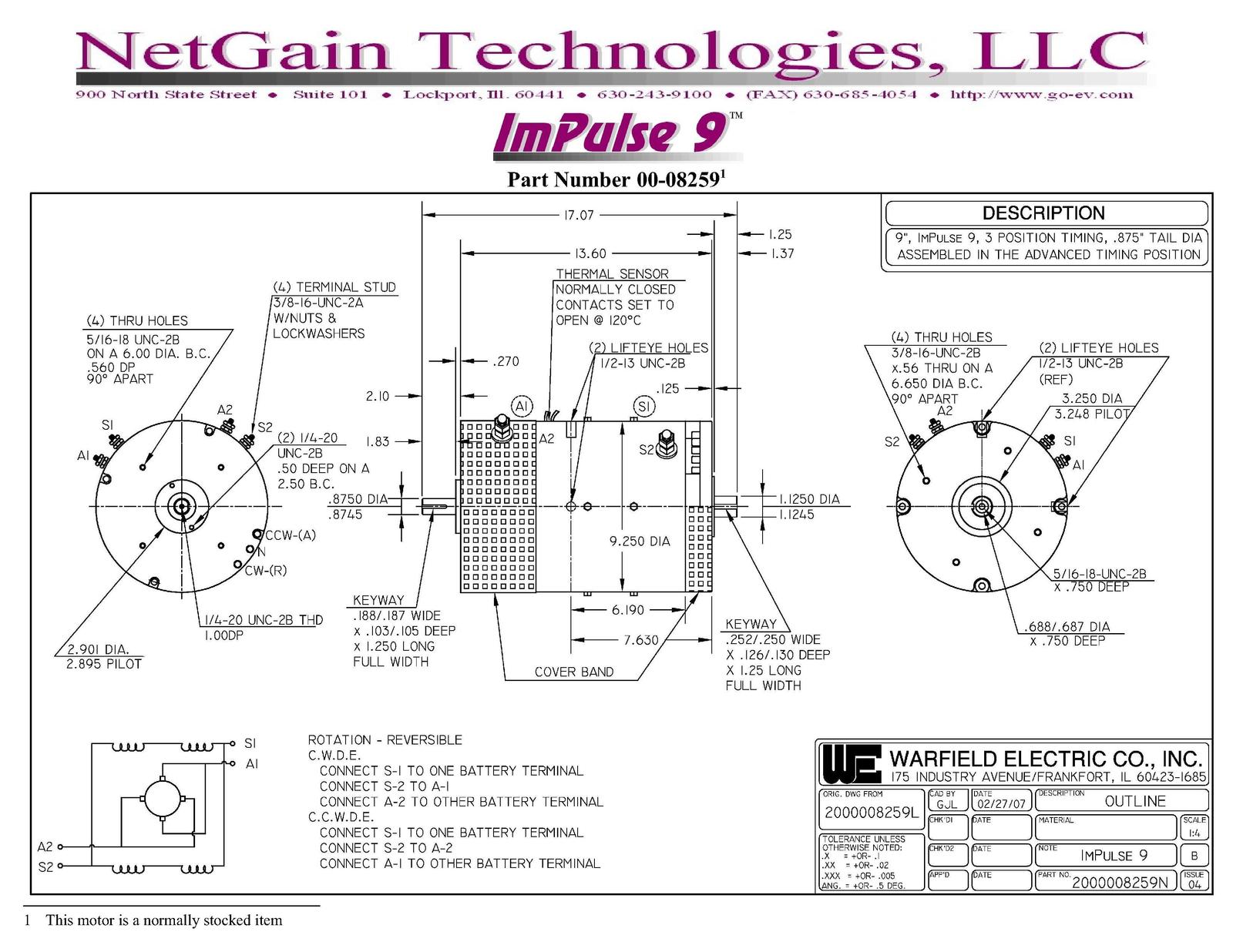

EV Works is proud to be an official distributor of NetGain products for the Australasian region. The ImPulse 9 is a high performance series DC motor from NetGain. It is rated to 192V, is 9.25\" diameter with a double ended shaft, and is ideal for small to medium electric vehicles. It is significantly shorter than the WarP 9, which makes it ideal for front wheel drive vehicles with a transverse gearbox in a compact engine bay. The motor shares the same mounting pattern as the common 8\" Advanced DC motor, so it will fit onto most prefabricated engine adaptor plates etc designed for that motor. These motors feature a large commutator and brushes for high power handling and Class H insulation used throughout. Both shaft ends have standard keyways. The drive shaft is bored for a pilot bearing and drilled & tapped for a 5/16-18 bolt. The tail shaft also has a 1/4-20 bolt hole to mount tach sensors or secure couplers and accessories. Weight: 60 kg Some examples of vehicles running Netgain motors can be found at EVAlbum, for interest: We are confident that we can offer the best pricing on NetGain motors in Australia. Click here for more information about Australian vs US pricing.


Shipping Weight 80.0000kg
Shipping Width 0.500m
Shipping Height 0.600m
Shipping Length 1.000m
Shipping Cubic 0.300000000m3
