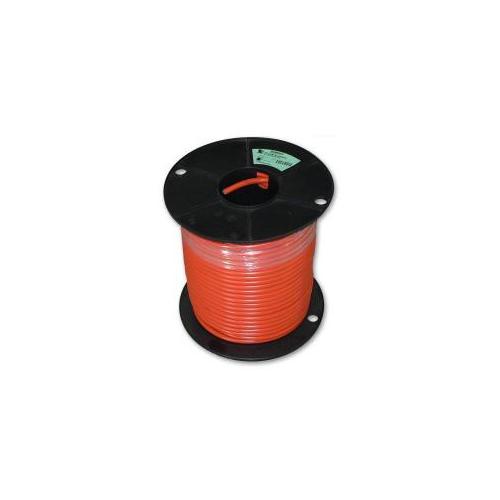

This cable has 16mm² of copper conductor made up of very fine strands, resulting in highly flexible power cable which is easy to work with. It is double insulated (orange outer with white inner) for excellent wearability and safety.

Continuous current rating (AS3008): 92A
Conductor: Nominal 0.2mm stranded flexible plain copper wire (to AS1125)
Insulation: 0.6/1KV Nitrile (NBR) modified PVC, complies with AS3808 V90HT (105°C)
Resistance: 1.21 ohms per km (@20°C)
Nominal O.D: 10.1mm
Mass: 202g/m

Orange insulation is a legal requirement for any cables carrying voltages above 32VDC. 16mm² is recommended for low power EVs, with controllers rated to about 200 amps.
