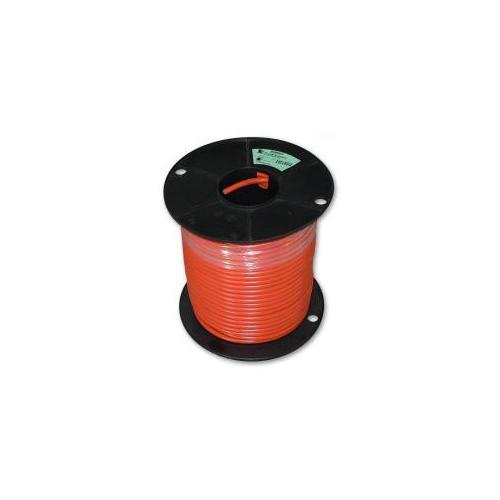

Power Cable, 25mm² Orange Double insulated, sold by the metre
Click to enlarge
Enter qty and post code to calculate shipping:
Australia Post Express Satchel - $28.60
This cable has 25mm² of copper conductor made up of very fine strands, resulting in highly flexible power cable which is easy to work with. It is double insulated (orange outer with white inner) for excellent wearability and safety.
Continuous current rating (AS3008): 125A
Conductor: Nominal 0.2mm stranded flexible plain copper wire (to AS1125)
Insulation: 0.6/1KV Nitrile (NBR) modified PVC, complies with AS3808 V90HT (105°C)
Resistance: 0.78 ohms per km (@20°C)
Nominal O.D: 11.8mm
Mass: 291g/m
Orange insulation is a legal requirement for any cables carrying voltages over 32VDC in road-going vehicles. 25mm² is recommended for low power EVs, with controllers rated to about 300 amps.
Weight: 300 g
(ZDU25O)
| SKU | ZDU25O |
| Shipping Weight | 0.4000kg |
| Shipping Width | 0.250m |
| Shipping Height | 0.020m |
| Shipping Length | 0.250m |
| Shipping Cubic | 0.001250000m3 |
