Click to enlarge
In Stock
Buy In Bulk & Save!
Buy 0 to 9: Pay $15.50
Buy 10 or more: Pay $14.50

Enter qty and post code to calculate shipping:

Australia Post Express Satchel - $28.60

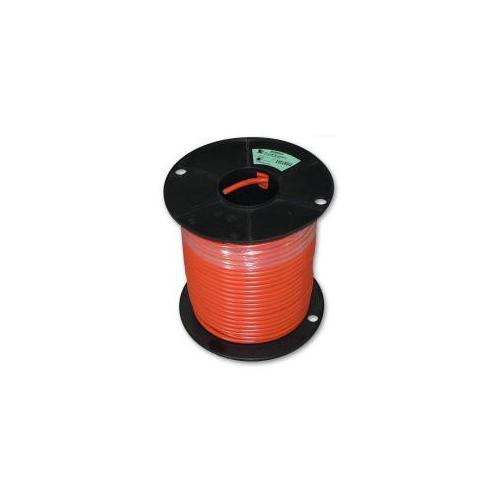

This cable has 50mm² of copper conductor made up of very fine strands, resulting in highly flexible power cable which is easy to work with. It is double insulated (orange outer with white inner) for excellent wearability and safety.

Continuous current rating (AS3008): 185A
Conductor: Nominal 0.2mm stranded flexible plain copper wire (to AS1125)
Insulation: 0.6/1KV Nitrile (NBR) modified PVC, complies with AS3808 V90HT (105°C)
Resistance: 0.386 ohms per km (@20°C)
Nominal O.D: 14.9mm
Mass: 528g/m

Orange insulation is a legal requirement for any cables carrying voltages over 32VDC in road-going vehicles. 50mm² is recommended for medium power EVs, with controllers rated to about 500 amps.

Weight: 600 g


Shipping Weight 0.6000kg
Shipping Width 0.280m
Shipping Height 0.020m
Shipping Length 0.280m
Shipping Cubic 0.001568000m3
