  • View PDF brochure for Gigavac GX14FC Contactor 750V 350A, Hermetically sealed
$207.90
Sold Out - Backorder Available

Enter qty and post code to calculate shipping:



Australia Post Express Satchel - $17.60

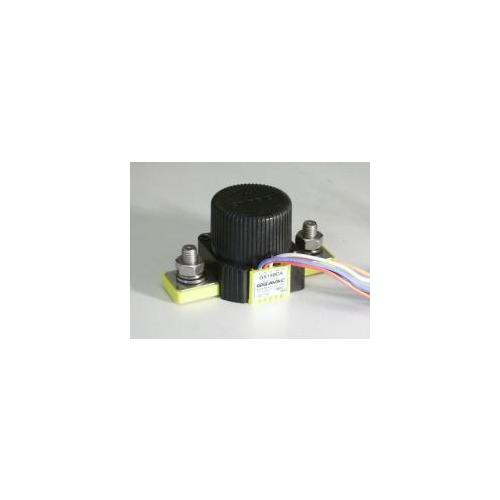

Gigavac are a US company who produce a range of high quality hermetically sealed contactors, particularly suitable for higher voltage systems and use in dirty environments (such as EV engine bays). The contactors also include coil economizers, which reduces the hold current of the coil once it has closed.

48v coil
 Dimensions 1115 x 60 x 57 mm
 Terminal pitch 82mm, nut 10mm
 350A continuous current rating (much higher short term!)
 2500A max breaking capacity
 Rated to 750V max
 Sealed contacts for long life
 Built in coil back EMF supression
 Very low holding current (50 mA) when contacts closed

Weight: 560 g

NOTE: If contactors are used to switch devices containing large input capacitors (such as EV controllers) a precharge circuit must be implemented to avoid contactor damage.

(REL-GX14FC)

SKU REL-GX14FC
Brand GIGAVAC
Shipping Weight 0.5500kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001000m3
